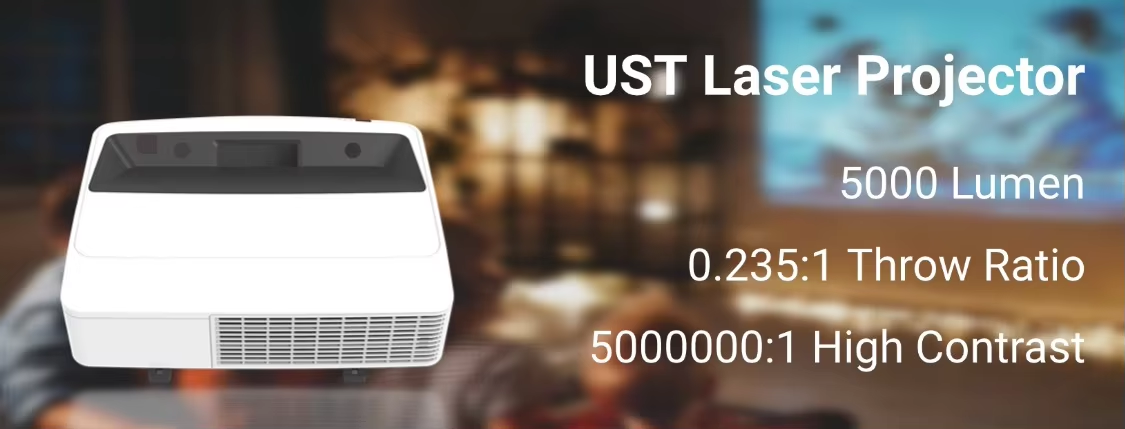

Ultra Short Focal 4K Laser Projector 3LCD Display Technology 5000LM For TV / Home Theater

Brand Name : SMX

Model Number : MX-WPL503U

Certification : CE RoHS

Place of Origin : Guangdong, China

MOQ : 1pc

Price : USD1980/unit

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 15working day

Packaging Details : Pack with carton

Display Technology : 3LCD

Native Resolution : WUXGA (1920 x 1200)

Brightness(Lumen) : 5000

Throw Ratio : 0.235:1

Screen size : 80-120nch(Diagonal)

Contrast Ratio : 5000000:1

Aspect Ratio : Native:16:10 Compatible: 4:3/16:9

Speaker : 16W*1

MAX Dimensions (WxHxD mm) : 520(W)×435(D)×168(H)

Net. Weight (KG) : 11kg

Warranty : 1 year

Light source : LASER

Contact Now

laser ultra short focal 4K Laser TV Laser Home theater 3LCD display technology 5000LM

Multi-resolution, providing full HD display

The high-definition resolution of WUXGA1920*1200 makes the screen display more delicate and vivid, and the document content is clearly visible.

Laser solid-state light source, 30,000 hours long life

The Venus LCD laser ultra-short-throw projector uses a laser solid-state light source to achieve an ultra-long service life of up to 30,000 hours. The attenuation curve of the laser light source is relatively gentle, so that the output image quality can maintain high brightness, saturation and contrast for a long time, and the color of the image is always clear and bright. The Venus LCD laser ultra-short-throw projector also uses a multi-laser module light source, which is not afraid of the failure of a single laser diode and is more stable. With a variety of laser modes, it can adapt to the ambient light of various scenes, and the brightness can be adjusted from 50% to 100%

Variable ultra-short distance, better display experience

0.235:1 ultra-short throw ratio, 20cm can project a 100-inch (WUXGA) picture, and the image is softer by the animation reflection effect, which effectively protects eyesight.

Ultra Short Focal 4K Laser Projector 3LCD Display Technology 5000LM For TV / Home Theater

Key Features

*5,300 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
  *High brightness and contrast with long life 20,000 hour Laser Light Source.
  *Ultra Short Throw (0.235:1) manual focus lens.
  *10-bit color processing, for superior color reproduction.
  *Native WUXGA resolution. compatible with inputs up-to UXGA, WUXGA and 4K.
  *Supports 4K video input via HDMl.
  *Horizontal, Vertical & Corner Keystone Correction.
  *Pincushion/Barrel & 6 point Geometric Correction.
  *Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
  *Compatible with Crestron RoomView" & AMX Device Discovery Technology.
  *Wired network control and monitoring.

Ultra Short Focal 4K Laser Projector 3LCD Display Technology 5000LM For TV / Home Theater

Specifications:

    	  			Model
  			MX-WPL500U

  			Brightness
  			Lumen
  			5000

  			Overall Spec

  			Panel
  			Display Panel
  			3x0.64” with MLA

  			Display Technology
  			Liquid Crystal Display

  			Native Resolution
  			WUXGA (1920 x 1200)

  			Light source
  			Life time
  			Normal mode
  			20000hrs

  			ECO1 mode
  			30000hrs

  			ECO2 mode
  			30000hrs

  			Projection
  			Lens
  			Lens Vendor
  			RICOH

  			F
  			F1.7

  			f
  			2.84mm

  			Zoom/Focus
  			Manual

  			Throw Ratio
  			0.235:1

  			Screen size
  			80-120nch

  			CR
  			Contrast Ratio
  			(FOFO)
  			5000000:1

  			Noise
  			Noise(dB)

  			37dB (Normal)
  			30dB(ECO1)
  			27dB(ECO2)

  			Uniformity
  			Uniformity(Actual Min)
  			-JISX6911
  			80%

  			AR
  			Aspect Ratio
  			Native:16:10
  			Compatible: 4:3/16:9

  			Terminal(I/O port)

  			Input
  			VGA
  			*1

  			HDMI 1.4B(IN)
  			*2

  			USB-A
  			*1

  			USB-B
  			*1(Display)

  			RJ45
  			*1 (Display)

  			Audio in (mini jack,3.5mm)
  			*1

  			Output
  			VGA
  			*1

  			Audio out
  			(mini-jack,3.5mm)
  			*1

  			Control
  			RS232
  			*1

  			RJ45
  			*1 (Control)

  			USB-B
  			*1 (For upgrade)

  			General Spec

  			Audio
  			Speaker
  			16W*1

  			Dust filter
  			W/Filter

  			Filter Life time
  			8000h

  			Power
  			Consumption
  			Power Requeirements
  			100~240V@ 50/60Hz

  			Power Consumption
  			(Normal) (Max)
  			380

  			Power Consumption
  			(ECO1) (Max)
  			280

  			Power Consumption
  			(ECO2) (Max)
  			230

  			ECO Standby Mode
  			Power Consumption
  			<0.5W

  			Temp.&Humidity
  			Operating Temp.
  			5 to 40°C

  			Operating Thumidity.
  			20-80%

  			Store Temp.
  			-10 to 50°C

  			High altitude
  			0~3000m



Contact us :We can provide 3LCD and LASER PROJECTORS from 3500 lumens to 20000 lumens with competitive prices. We also ODM projectors for some international brands like NEC, Panasonic, Sharp etc.

Welcome to contact us for any inquiry, OEM/ODM is available.

  Website for SMX Projector: www.smxdisplay.com
  Email: sales001@smxdisplay.com
  Wechat/Whatsapp: 0086-18719043327
